指夹式血氧仪模块方案,深圳加一健康科技有限公司,oximeter module solutions

The professional medical device R&D team has mature solutions and industry-leading performance indicators. It can provide OEM/ODM, and can provide medical device FDA/CFDA/CE certificate registration counseling.

1. Low perfusion level 0.1%

2. Value in 4 seconds, leading the industry

3. Accurate measurement of three skin colors

4. Bluetooth/PCBA/Device

5. Anti-ambient light interference ability: The deviation of blood oxygen measurement value under indoor natural light and existing lighting source is less than ±1% compared with the measurement value under darkroom conditions

Specifications

Display format: digital tube LED display/OLED display;

Accuracy of blood oxygen measurement: blood oxygen saturation is ±2% in the 70%-99% range, less than 70% is undefined, and the pulse rate is ±2bpm;

Blood oxygen accuracy: 70~100%, ±2%;

Pulse rate accuracy: 25-250bpm, ±2% or ±2bpm;

Weak perfusion measurement performance: 0.1% 70~100% ±2%

Response frequency and amplitude: 1 ~ 5 Hz, 0 ~ 3cm

Low battery voltage indication: LED symbol;

Power requirements: 2 AAA 1.5V alkaline batteries, voltage adaptation range: 2.6-3.6V;

Power consumption: <30 mA;

Life time:> 25 hours



Bluetooth Support Optional

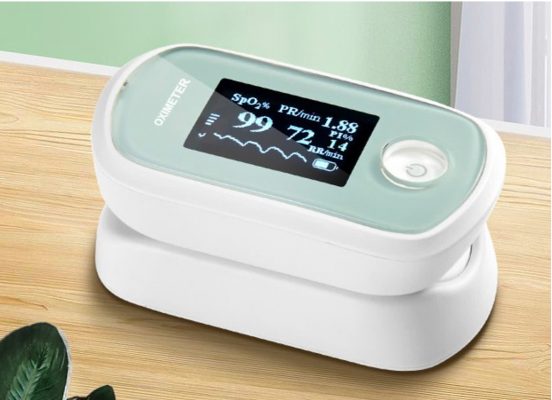

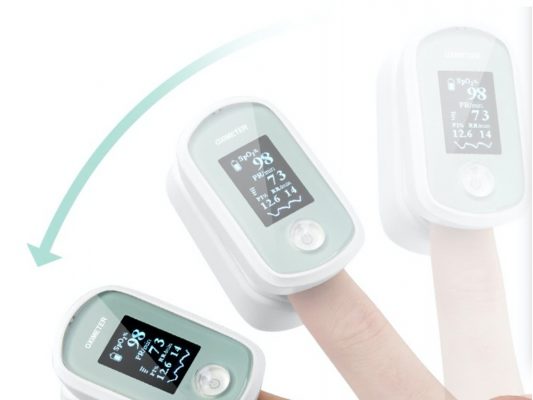

Finger clip oximeter complete machine

Anti-interference

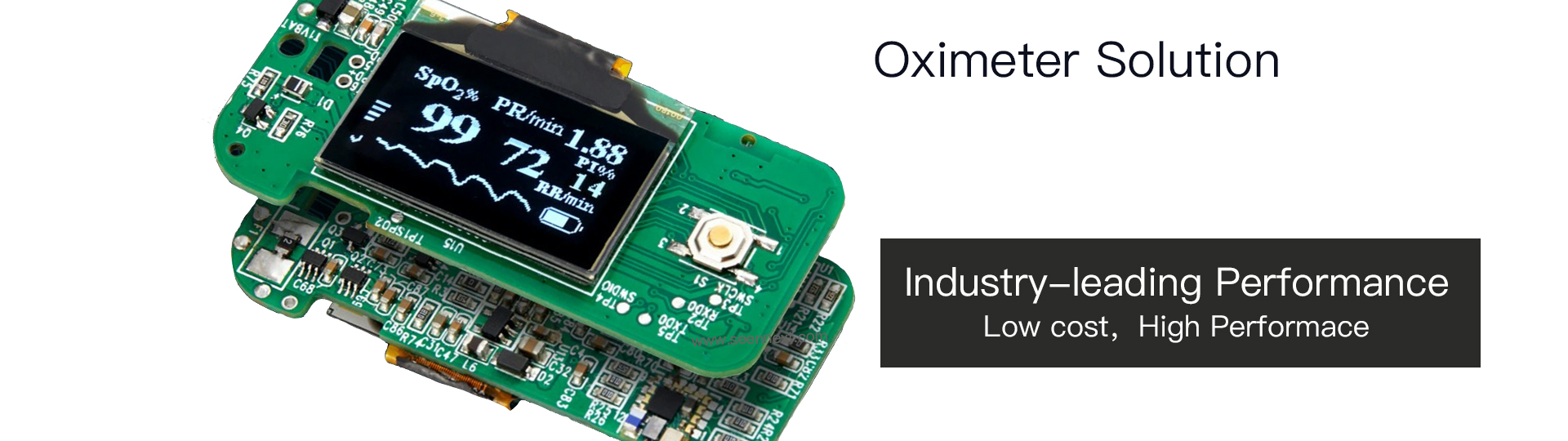

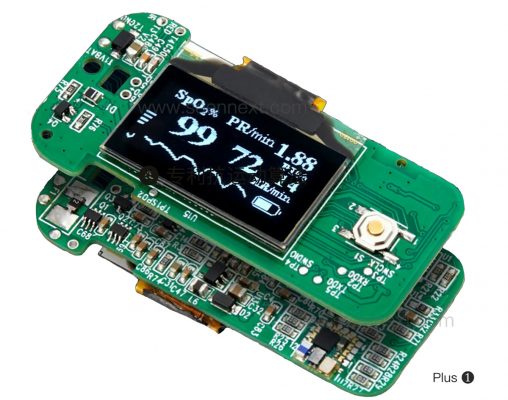

Finger clip oximeter PCBA solution
